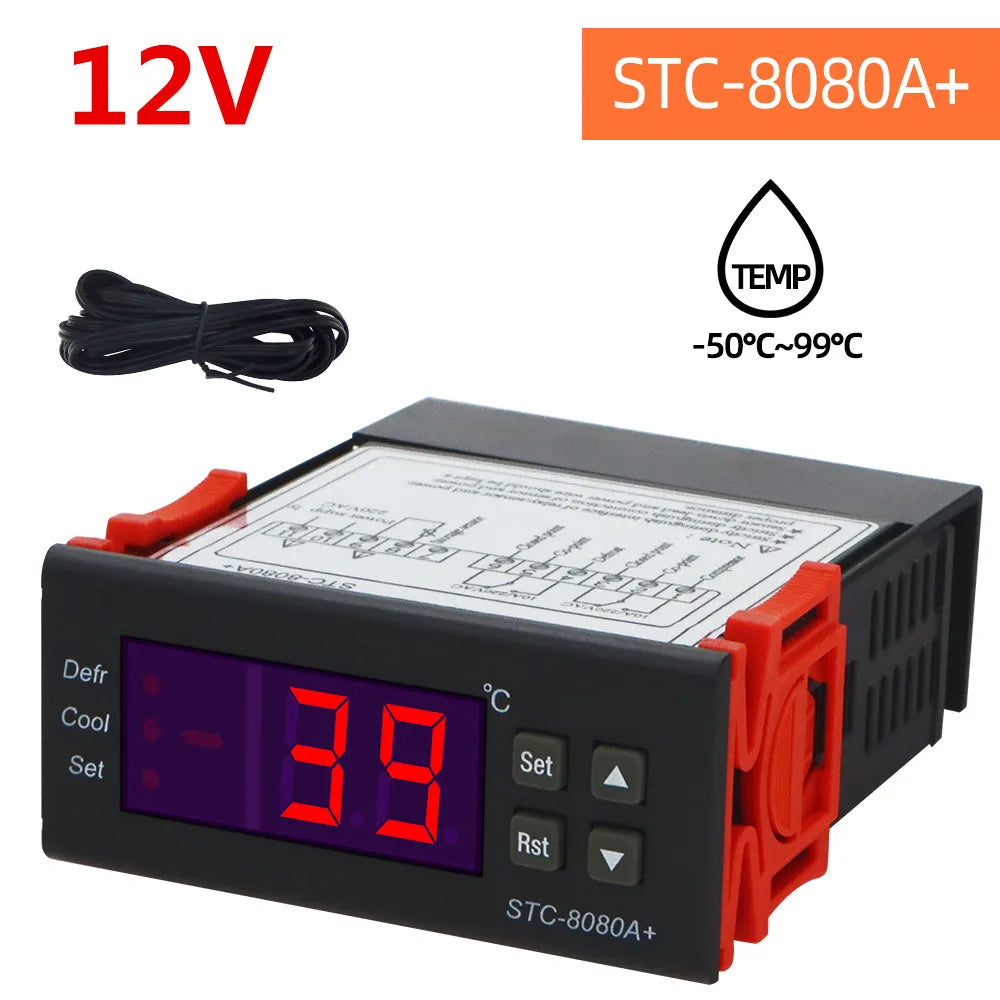

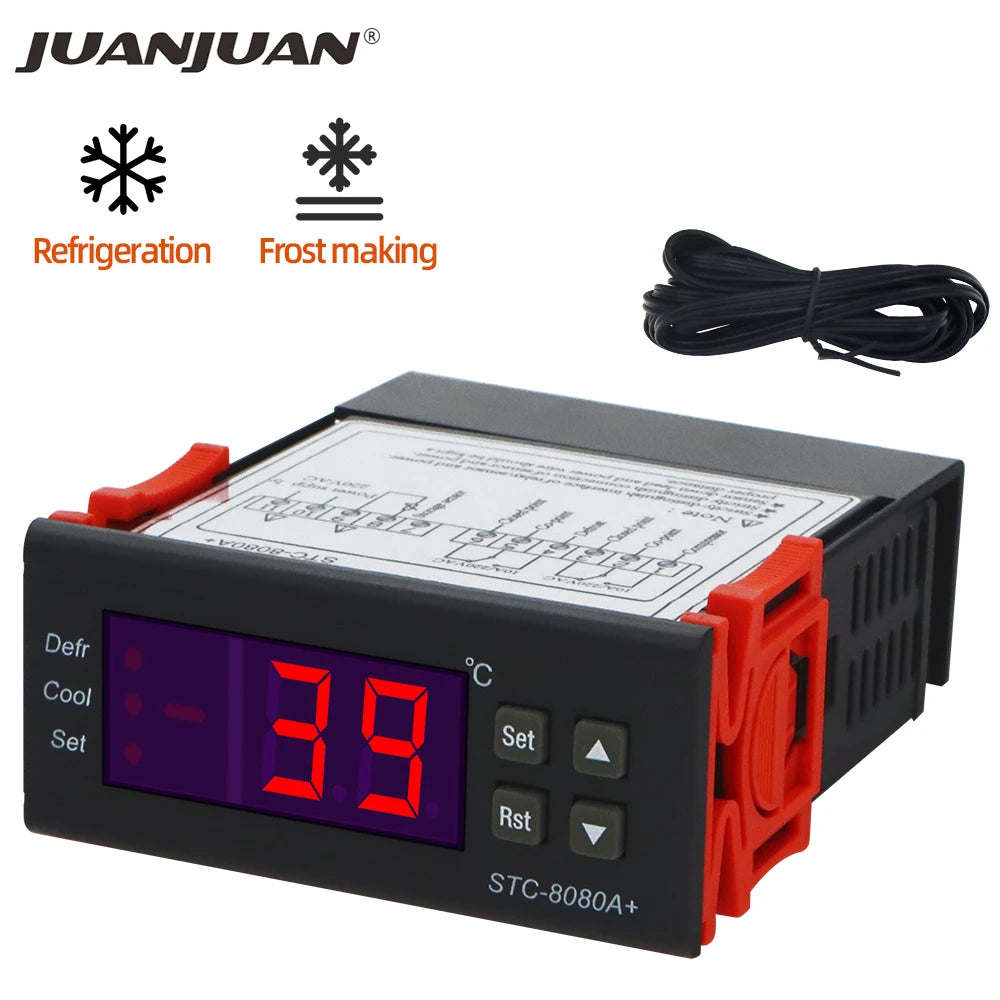

STC-8080A+ Temperature Controller – 12V/24V/220V Dual Sensor Cold Storage, Freezer & Refrigeration Regulator with Frost Alarm

Overview

The STC-8080A+ is a versatile temperature controller designed for cold storage, freezers, and refrigeration systems. Equipped with dual sensors and advanced features, it ensures precise temperature management and system protection.

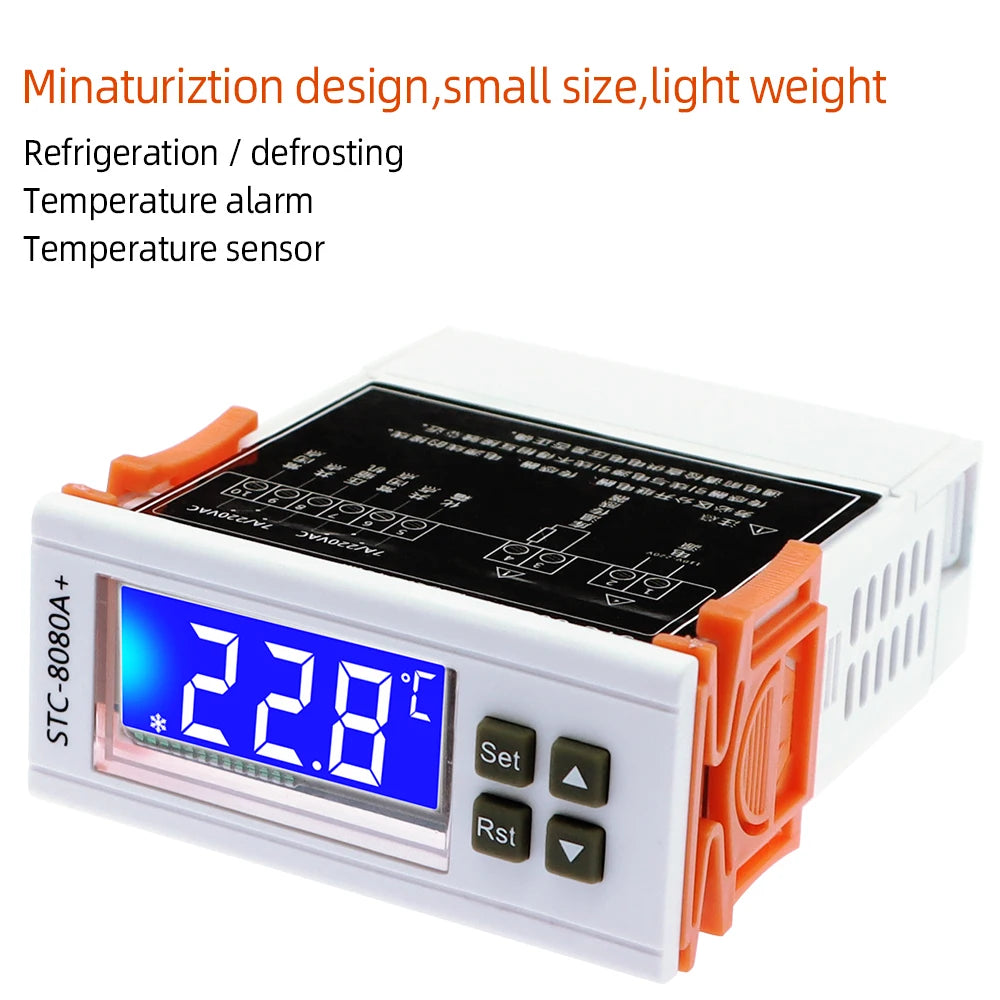

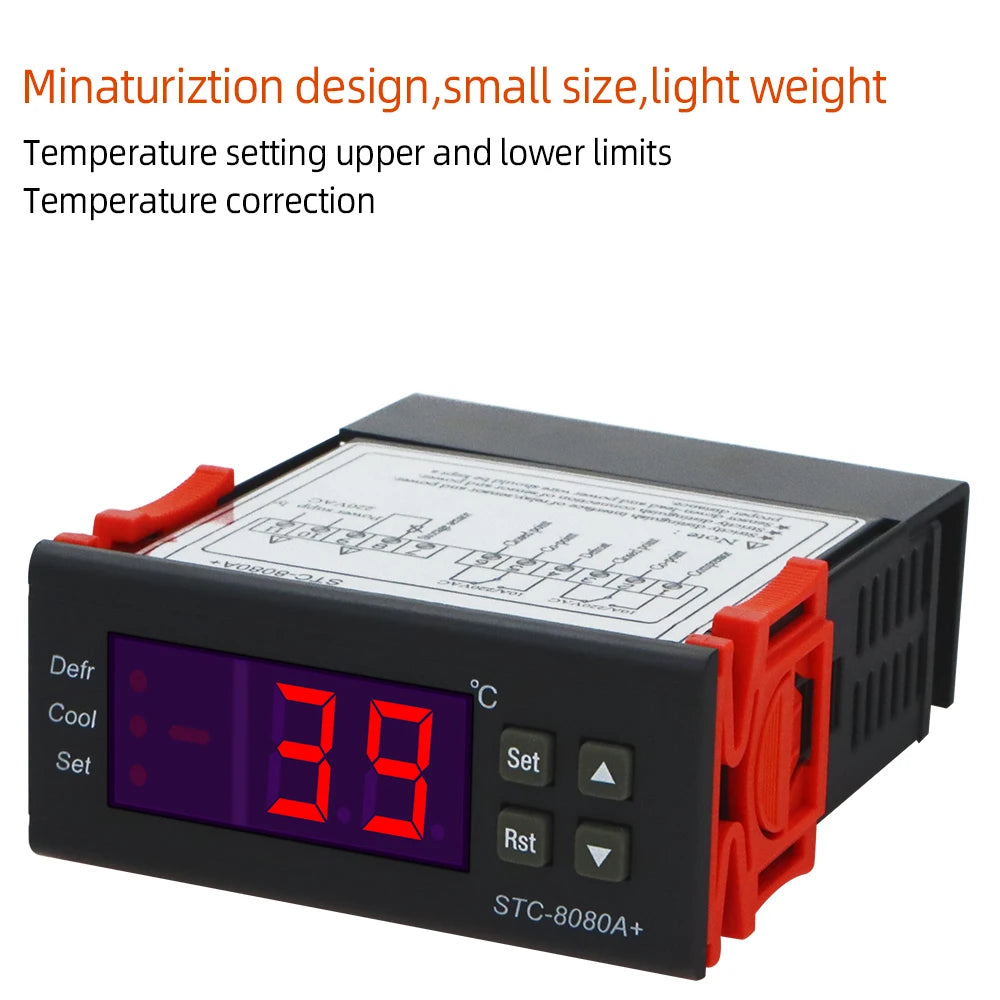

Key Features:

• Measures, displays, and controls temperature accurately.
• Adjustable defrosting cycle and timing for optimal freezer performance.
• Alarm activates when temperature exceeds preset limits.
• Built-in compressor delay protection to prevent system overload.
• Operates reliably even if the sensor experiences errors.

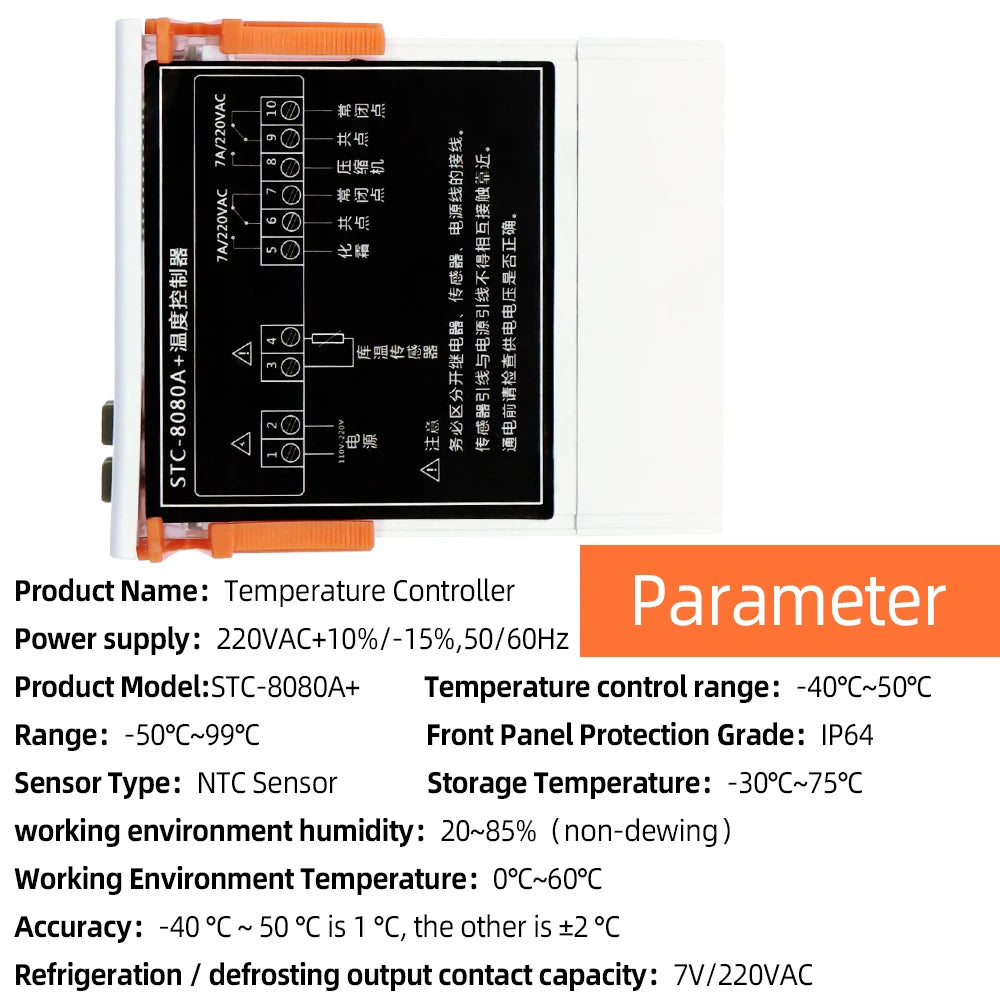

Technical Specifications:

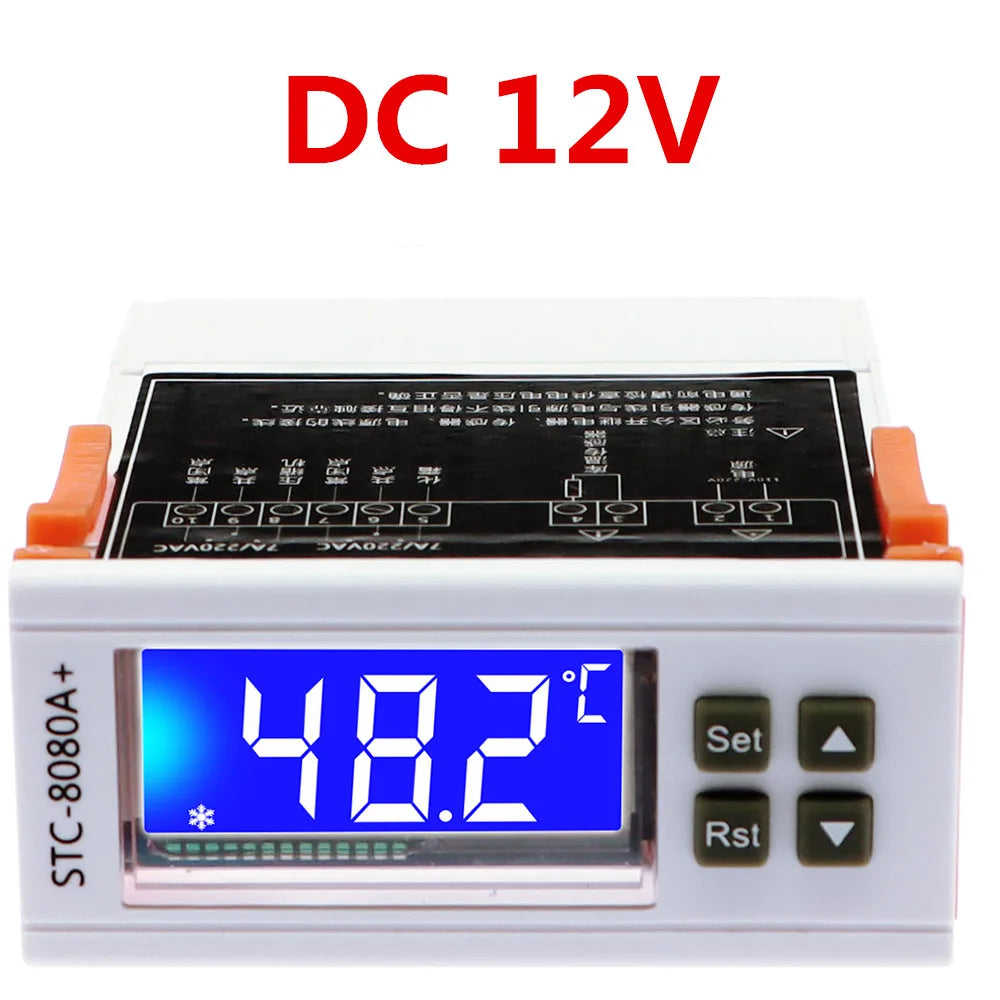

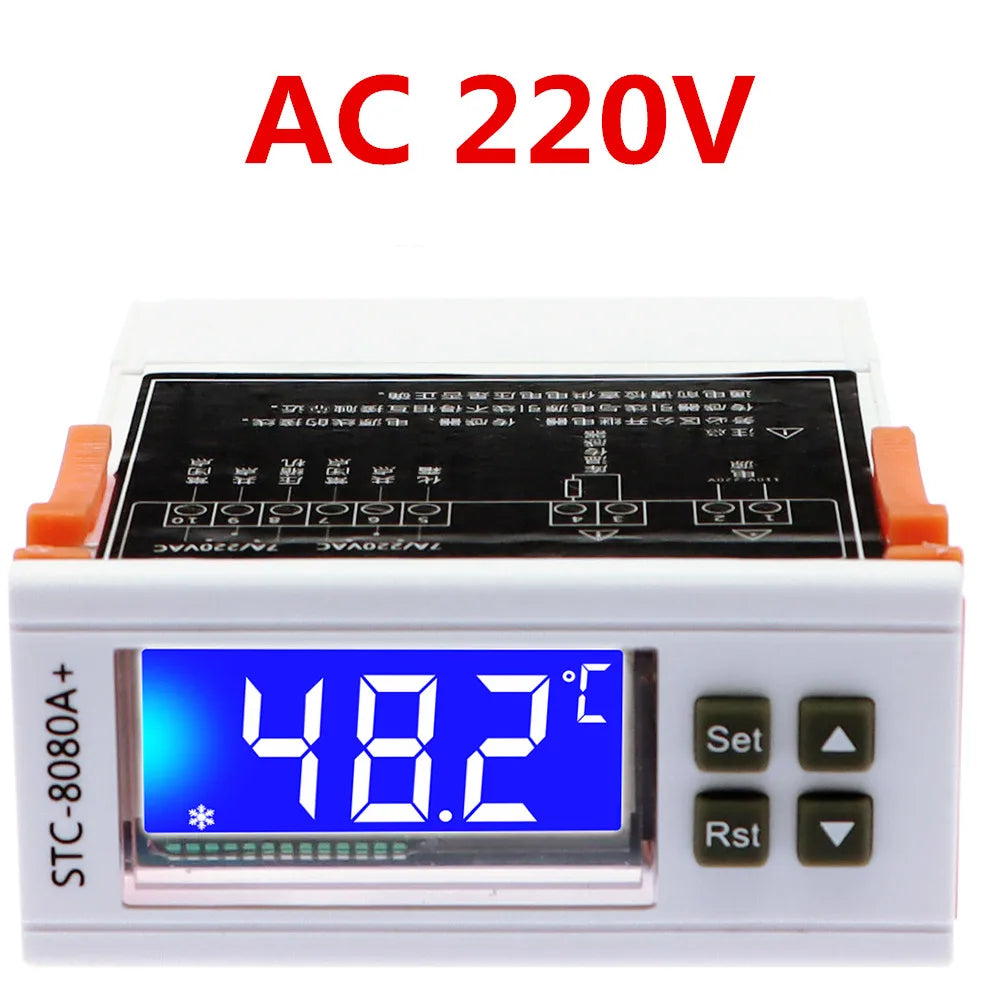

• Power supply: 220VAC ±10%, 50/60Hz (compatible with 12V/24V)
• Measuring range: -50°C to 99°C
• Temperature control range: -40°C to 50°C
• Resolution: 1°C
• Accuracy: ±1°C (-40°C to 50°C), ±2°C otherwise

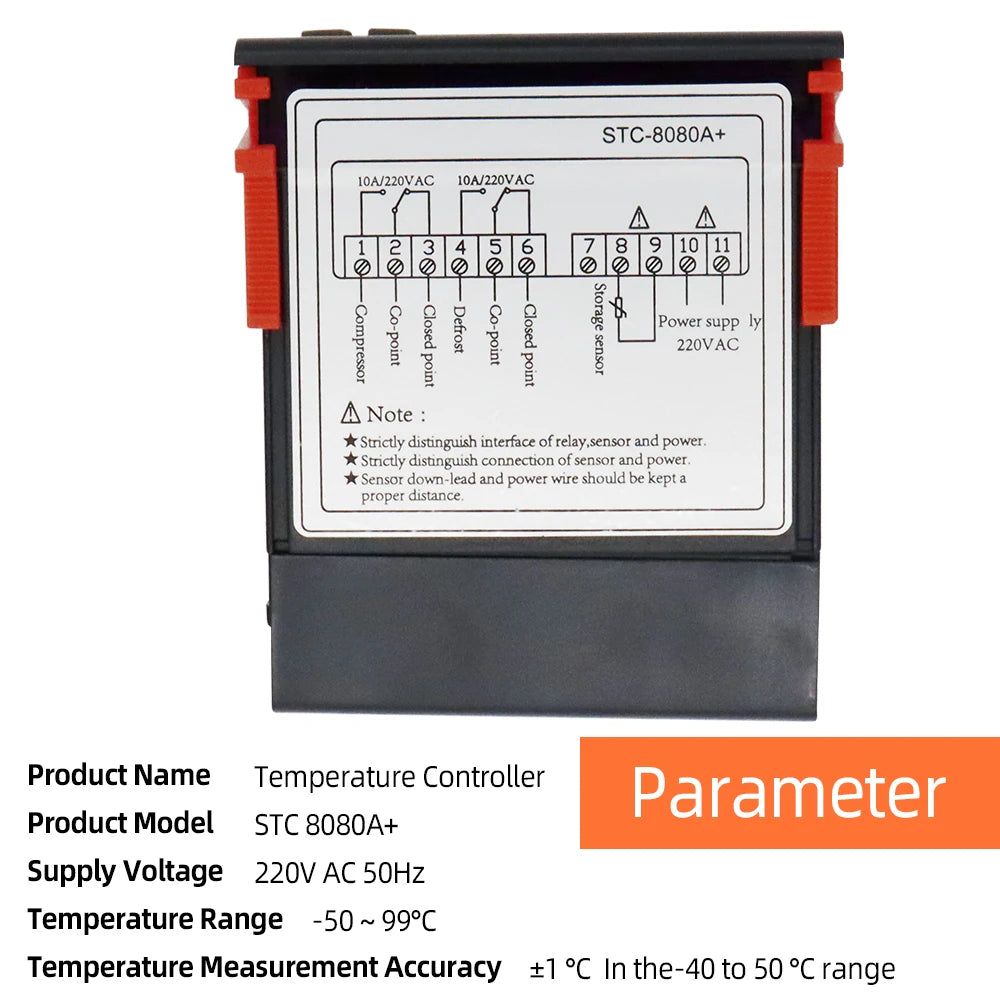

• Relay capacity: 10A for compressor and defroster
• Sensor: NTC type with 1m cable
• Front panel protection: IP64
• Operating temperature: 0°C to 60°C
• Storage temperature: -30°C to 75°C
• Humidity: 20%-85% (non-condensing)
• Power consumption: ≤3W

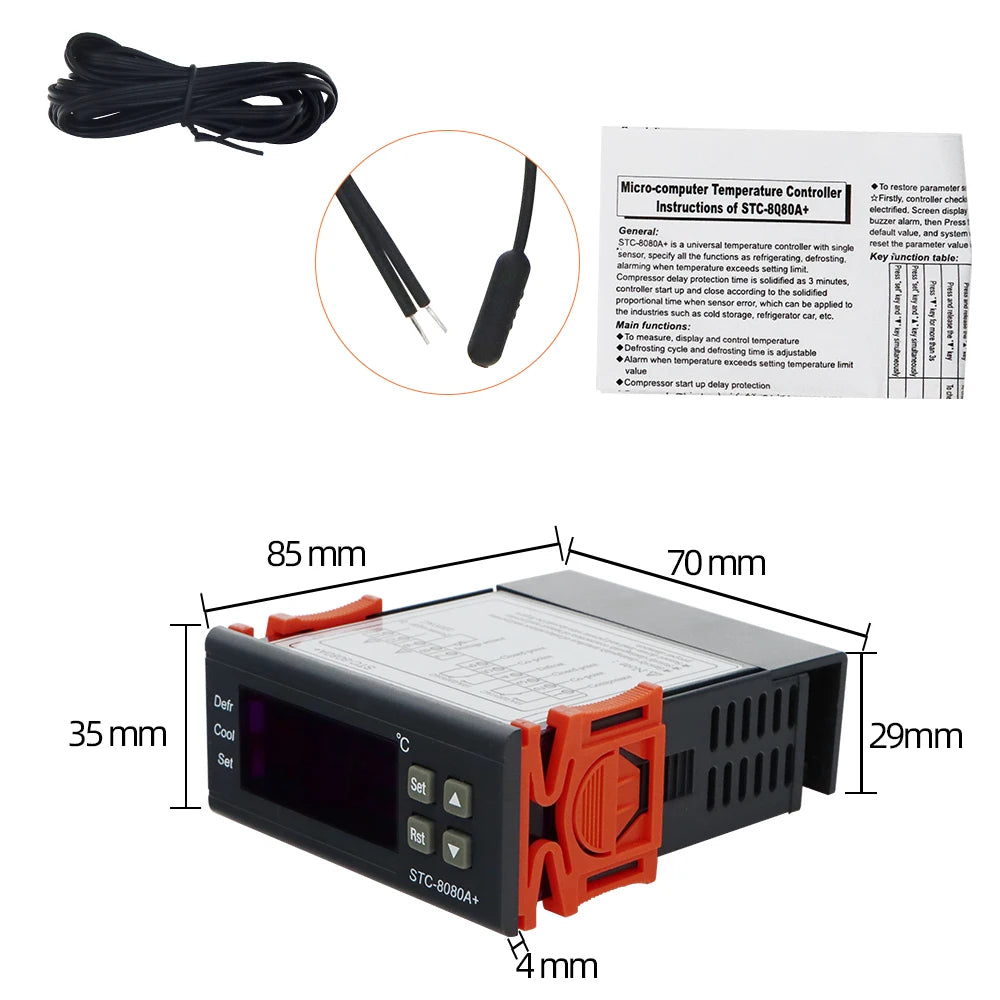

Package Includes:

• 1 x STC-8080A+ Temperature Controller
• 1 x Instruction Manual
• 1 x Sensor Cable

The STC-8080A+ offers reliable temperature regulation for both industrial and household refrigeration needs, combining accuracy, durability, and easy installation in a compact design.
